Product, Fixed Type

Introduction:

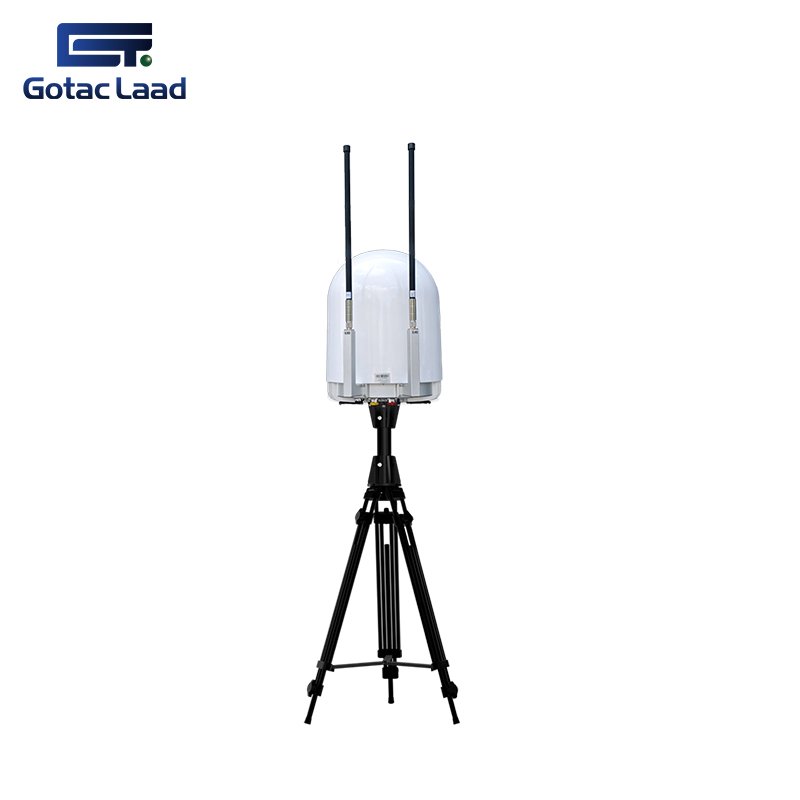

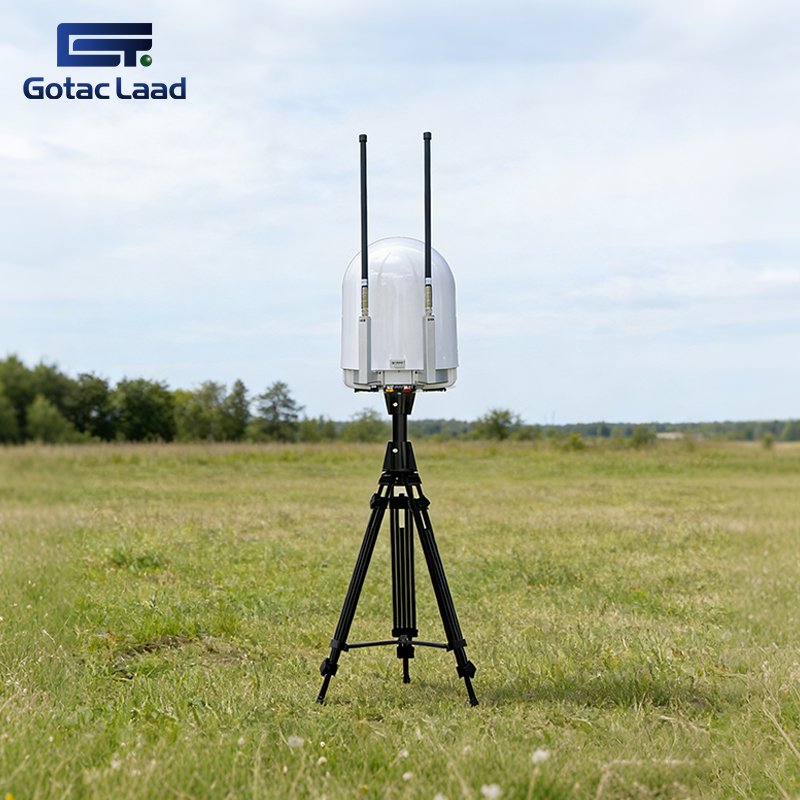

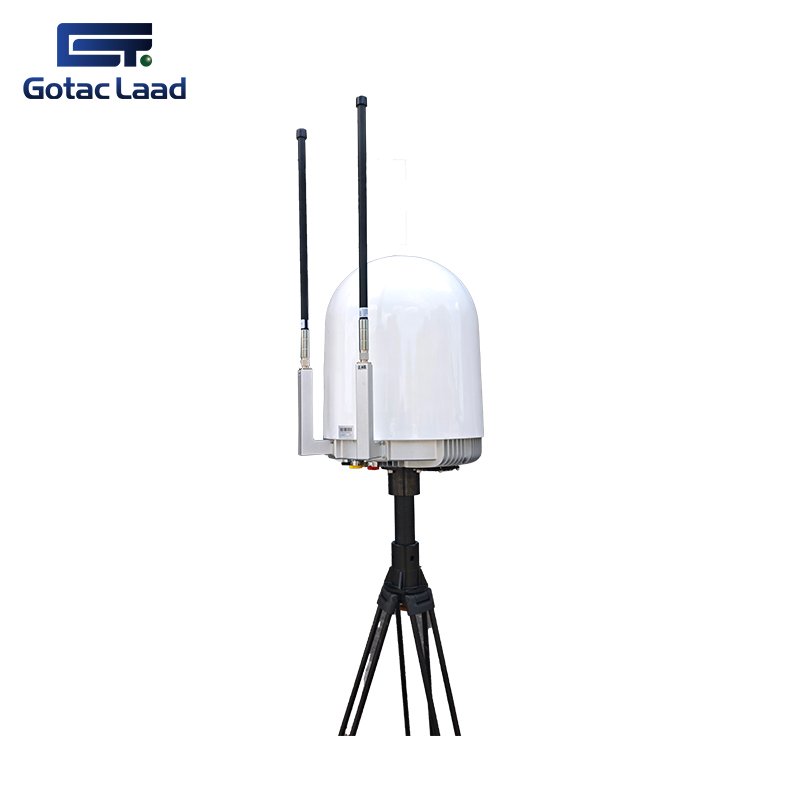

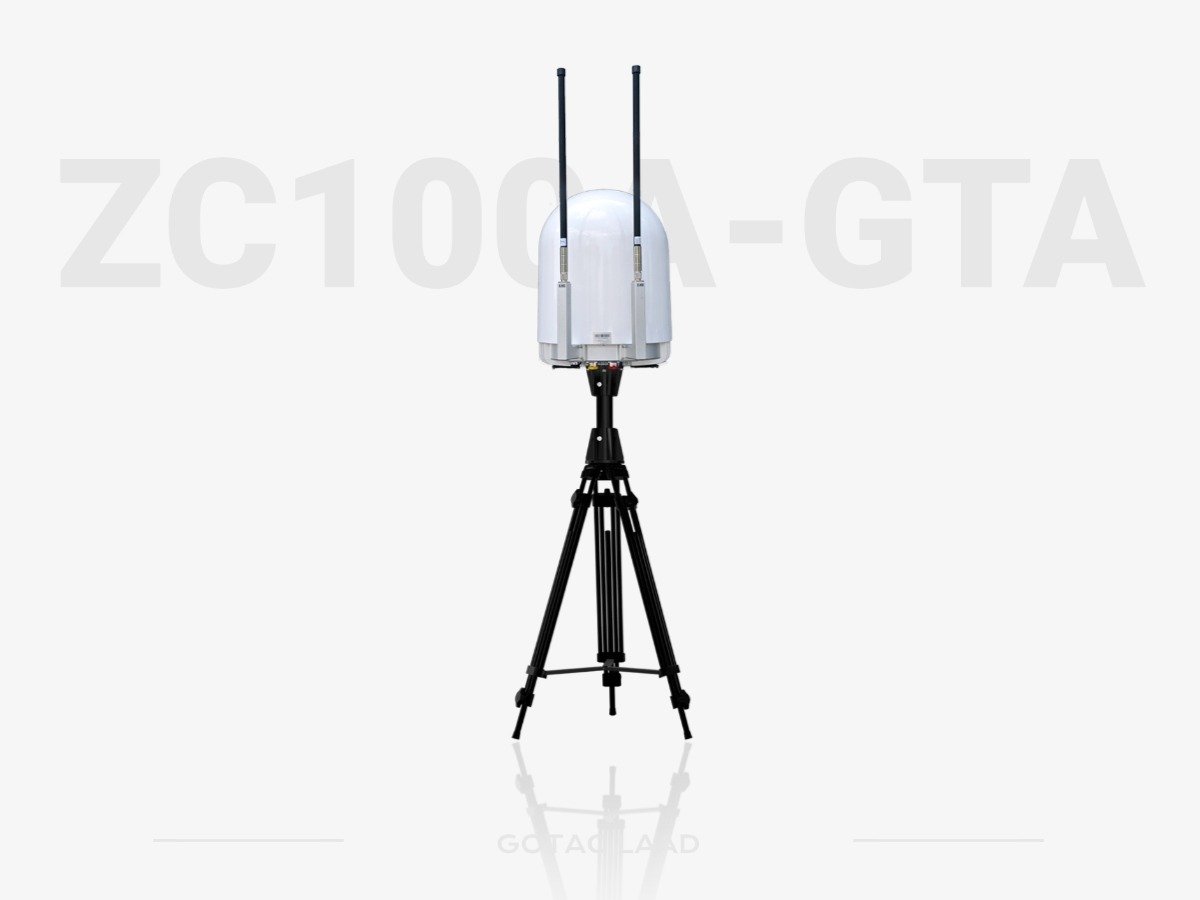

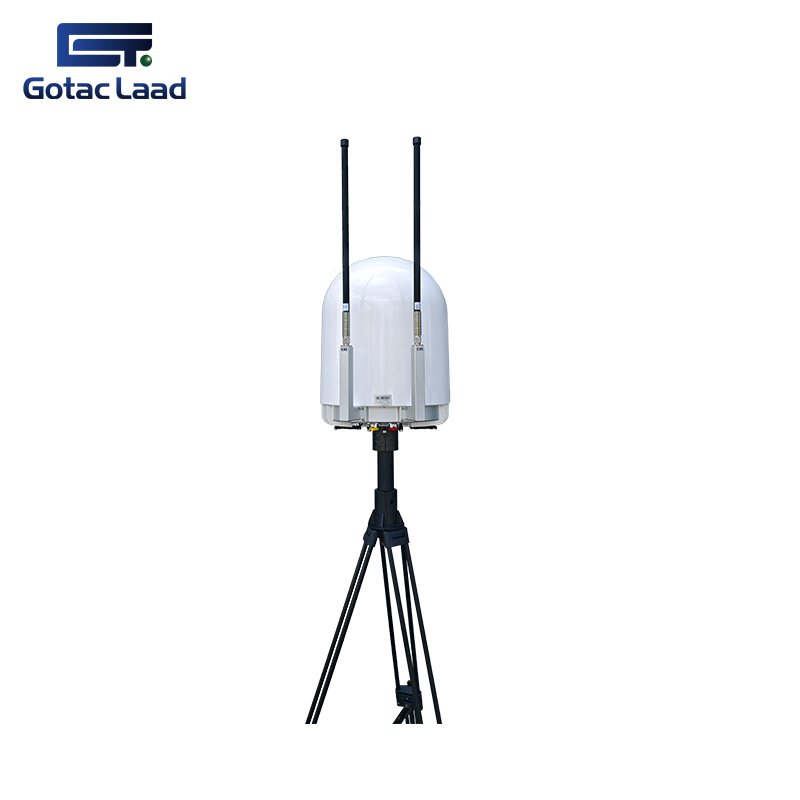

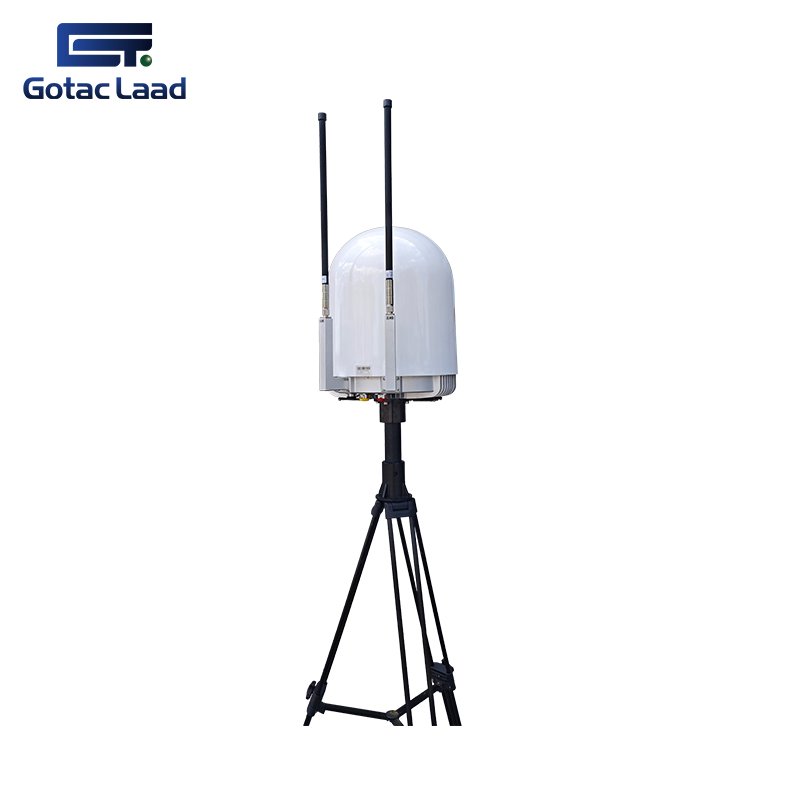

ZC100A-GTA can detect and identify the type and electronic fingerprint of low-altitude, low-speed, small drones. Utilizing advanced Protocol Analysis Technology, the system decodes radio signals from remote control links and video transmissions to ensure high-accuracy identification. This enables early warning identification, location tracking, and provides precise intelligence information for subsequent defense and handling.

2.Functions

2.1 Real-time identification & classification of UAV types, unique IDs, and models;

2.2 Customizable identification rules (blacklist/whitelist management);

2.3 Multi-node Network Integration;

2.4 Automated data logging & historical analytics and supports viewing and downloading logs;

2.5 Supports user permissions (optional).

3.Parameters

NO.	Feature	Specifications
1	Electricity consumption	The power consumption of the detector is 150W.
2	Detection frequencyband range	70MHz-6GHz full-band scanning, detection, and display
3	Detect key frequencybands	800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz,  5.8GHz
4	Detection range	≥10km (depending on operating conditions)
5	scope	360° detection and identification drones
6	Enemy alarm	Enemy approach sound and light alarm, screen displays prompt
7	Orientation recognition	Supports the identification and display of the direction  ofapproaching enemies.
8	drone positioning	Supports UAVs with 02-04 protocol
9	Track capture	Supports UAVs with 02-04 protocol

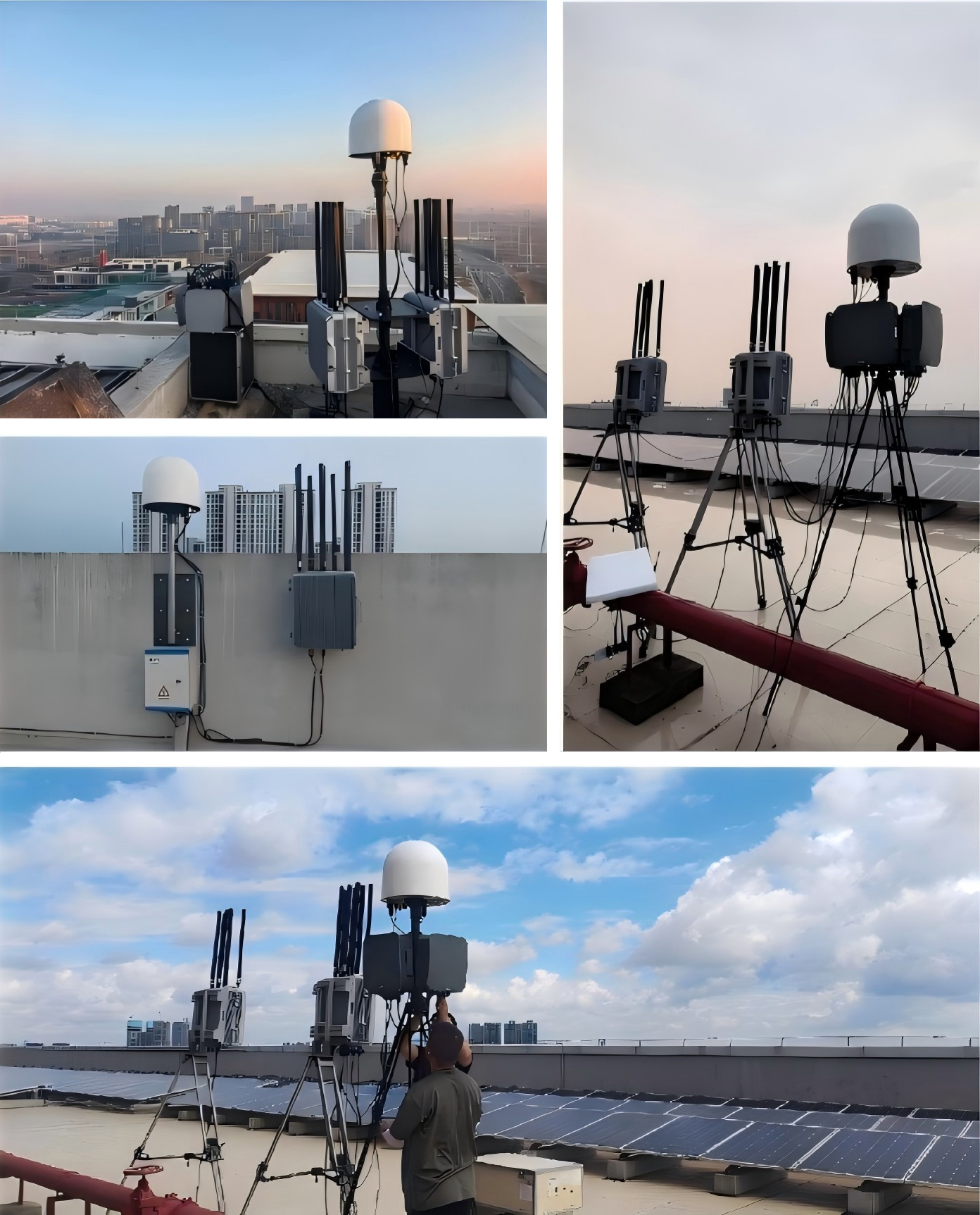

Application scenarios

Large event venue：Ensuring public safety during high-profile events via persistent low-altitude surveillance

Urban Low-Altitude Defense:Effectively distinguishes authorized drones from potential threats in electromagnetically congested urban environments.
