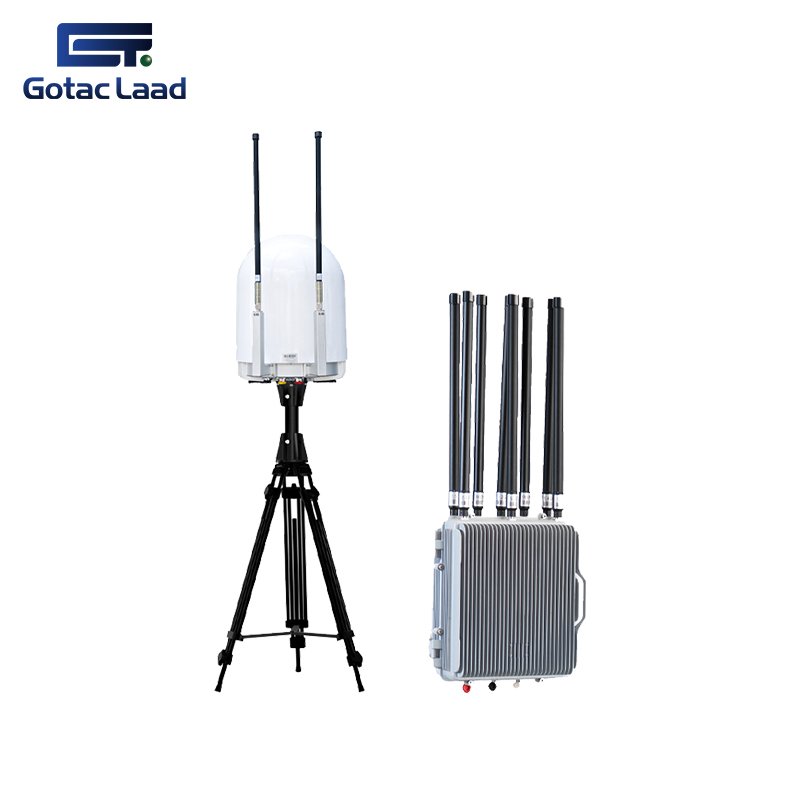

Fixed Integrated UAV Detection, Jamming & Spoofing System ZC100AB
Core Features:
1. Integrated Detect-and-Defend Solution A seamless fusion of radio detection, protocol decoding, electromagnetic jamming, and navigation spoofing, providing a full-process defense cycle from autonomous discovery to real-time neutralization.
2. Advanced FPV Countermeasures Specifically engineered to capture FPV video transmission signals and deliver high-intensity interference, effectively neutralizing high-speed and highly maneuverable drone threats.
3. Precision Navigation Spoofing Features rapid-activation (<4s) navigation spoofing for GPS, GLONASS, and BeiDou, enabling tactical redirection or forced landing of intruding UAVs.
4. Full-Spectrum Multi-Sensor Fusion Utilizes multi-sensor technology to cover an ultra-wide scanning range from 70MHz to 6GHz, ensuring 360° situational awareness of mainstream, DIY, and non-standard drones.
5. High-Capacity Networked Linkage Supports a “one-detection, multiple-jamming” scalable architecture, allowing seamless integration across nodes for unified command in large-scale urban or critical infrastructure protection.
Category：Product, Fixed Type
Product Details
Introduction:

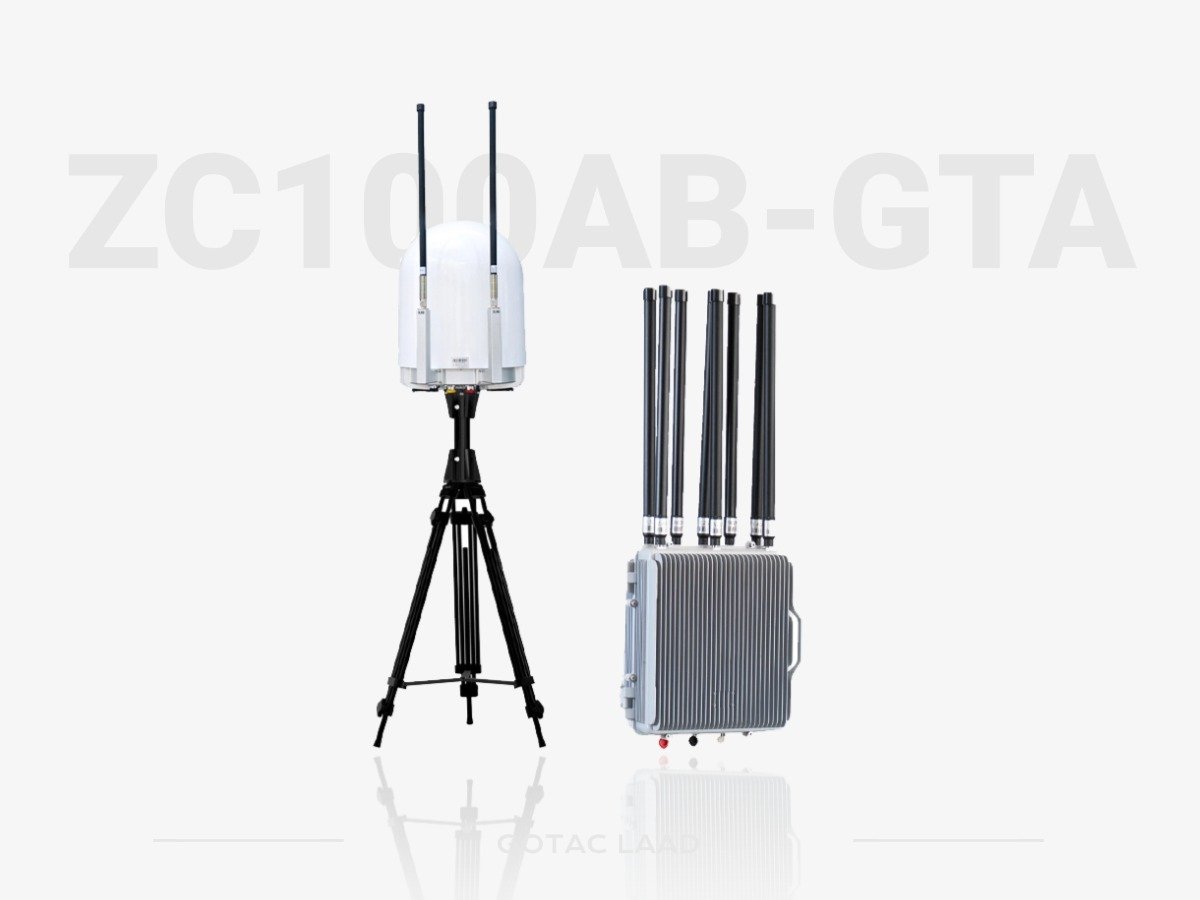

The ZC100AB-GTA is a high-performance integrated system that combines radio detection, protocol analysis, jamming, and navigation spoofing. It offers a complete “Detect-Identify-Neutralize” workflow to secure critical airspace against all types of drone threats. Featuring a scalable “One-to-Many” linkage, the system allows a single unit to coordinate multiple defense nodes for wide-area protection
Functions
1. Omnidirectional Detection: 360° real-time scanning with a 10km range to ensure zero blind spots.
2. FPV Intelligence: Real-time capture and decoding of FPV video feeds for immediate threat assessment.
3. Precision Neutralization: High-intensity jamming and navigation spoofing to force-land or redirect targets.
4. Smart Linkage: “One-to-Many” network architecture to coordinate multiple defense nodes via a single command center.
Parameters
| NO. | Feature | Specifications |
| 1 | Detection Frequency Band | 70MHz-6GHz full-frequency scanning,detection and display |
| 2 | Key Frequency Bands | 433MHz, 530MHz, 750MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 3.3GHz, 5.2GHz, 5.8GHz |
| 3 | Detection Range | ≥10km (Depends on working conditions) |
| 4 | FPV Video Transmission Detection | 500MHz-6.2GHz full-frequency scanning, detection and display |
| 5 | Video Transmission Detection Range | ≥1.5km (Supports real-time video viewing) |
| 6 | Detection/Jamming Coverage | Horizontal: 360° |
| 7 | Direction Finding Accuracy | ≤±15 RMS° |
| 8 | Spoofing Activated Time | ≤4s |
| 9 | Jamming Frequency Band | 700MHz-840MHz, 860MHz-930MHz, 1170MHz-1290MHz, 1400MHz-1490MHz, 1560MHz-1620MHz, 2385MHz-2490MHz, 5150MHz-5250MHz, 5725MHz-5850MHz |
| 10 | Jamming Distance | ≥3km (Depends on working conditions) |
| 11 | Spoofing Radius | 1 ~ 3km+ (Depends on environment and drone model) |
| 12 | Spoofing Signal | GPS, GLONASS, BD |
| 13 | Operation Temperature | (-40℃~+60℃) ±2℃ |
| 14 | IP Rating | IP66 |
| 15 | Weight | ≤170kg (Excluding packaging) |
| 16 | Size | 1367mm / 1013mm / 2661mm (L / W / H) |
Application scenarios
Large event venue:Ensuring public safety during high-profile events via persistent low-altitude surveillance
Urban Low-Altitude Defense:Effectively distinguishes authorized drones from potential threats in electromagnetically congested urban environments.
Power plant and substation deployment:Protecting critical infrastructure from unauthorized drone intrusions and potential sabotage.
Prison guard:Preventing contraband delivery and unauthorized aerial photography in correctional facilities
Frequently Asked Questions
We provide an integrated “Detect-Track-Neutralize” ecosystem. This includes high-precision microwave and millimeter-wave radar for detection and advanced laser-based neutralization for physical obstacle clearing and drone disruption.
Absolutely. Our solutions are scalable and modular, designed for seamless integration into airports, oil & gas refineries, and government facilities. We support multiple protocols to ensure compatibility with your current security management platforms.
Our hardware is industrial-grade and field-proven. Thanks to our experience in military-standard manufacturing, our systems are built to operate 24/7 in high-salt, high-humidity, and wide-temperature environments.
Yes, we offer tailored solutions based on your specific detection range and neutralization needs. As a National High-Tech Enterprise, our R&D team can provide hardware and software customization to meet local regulatory and environmental standards.
