Integrated 13-Band UAV Detection & Four-Sided Directional Neutralization System ZC100C
Core Features:
13-Band Directional Precision: Equipped with 13 frequency bands and a four-sided array for targeted, high-intensity interference with zero dead zones.
Advanced FPV Combat Capability: Features specialized algorithms to detect, capture, and deliver “Super Interference” against high-speed FPV racing drones.
Fully Autonomous “Drop-and-Forget” Operation: Enables unmanned, 24/7 automated detection and counteraction, minimizing human intervention while maximizing security.
“1+N” Flexible Deployment: Supports a highly scalable architecture, allowing one command unit to coordinate multiple tactical nodes for expansive coverage.
Full-Spectrum Situational Awareness: Continuous monitoring across the entire frequency spectrum to identify and track mainstream, DIY, and evolving drone threats.
Category：Product, Fixed Type
Product Details
Introduction：

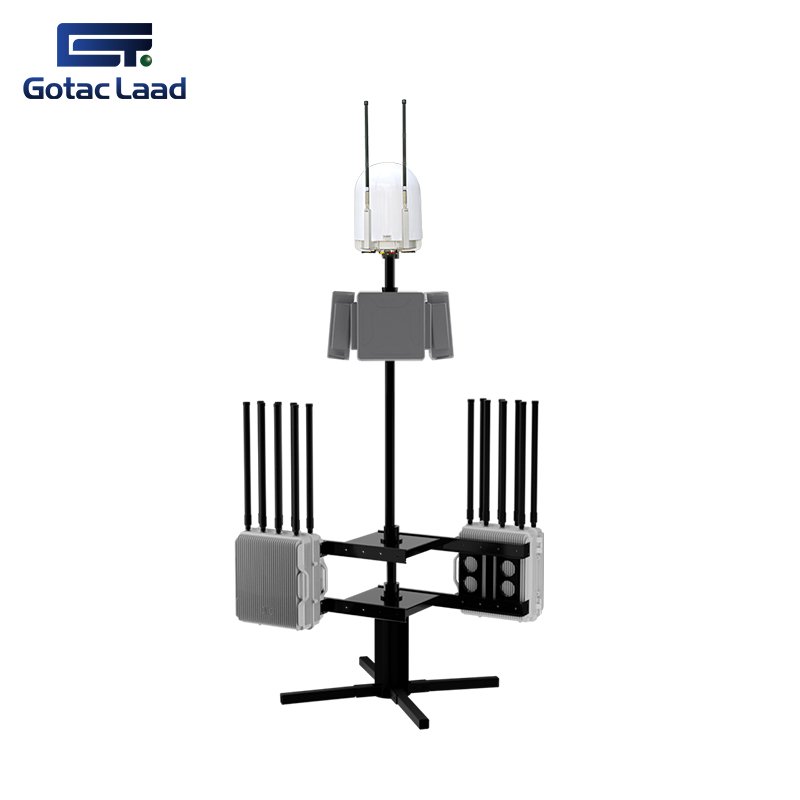

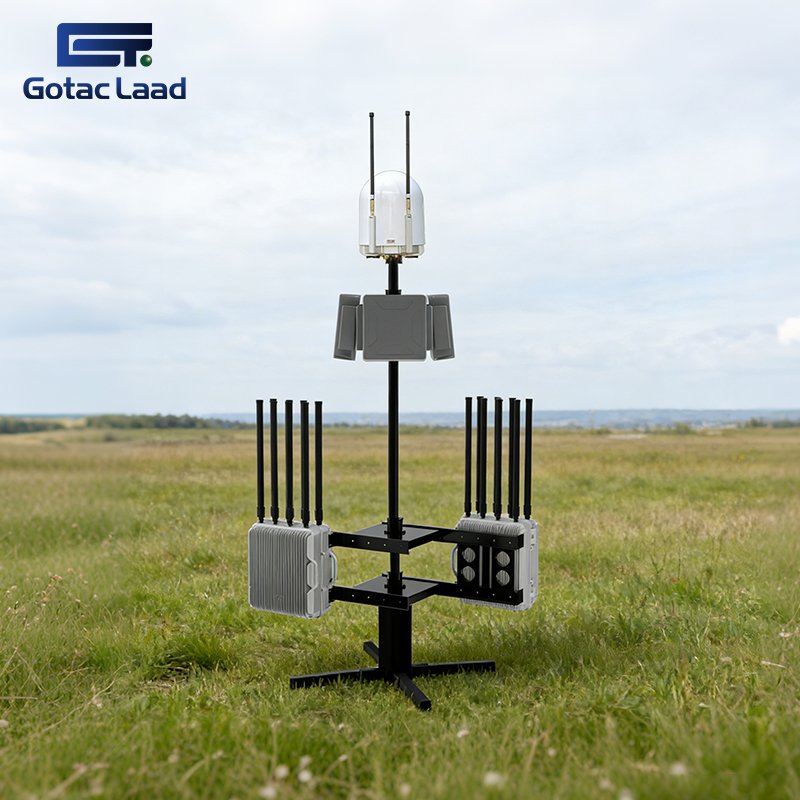

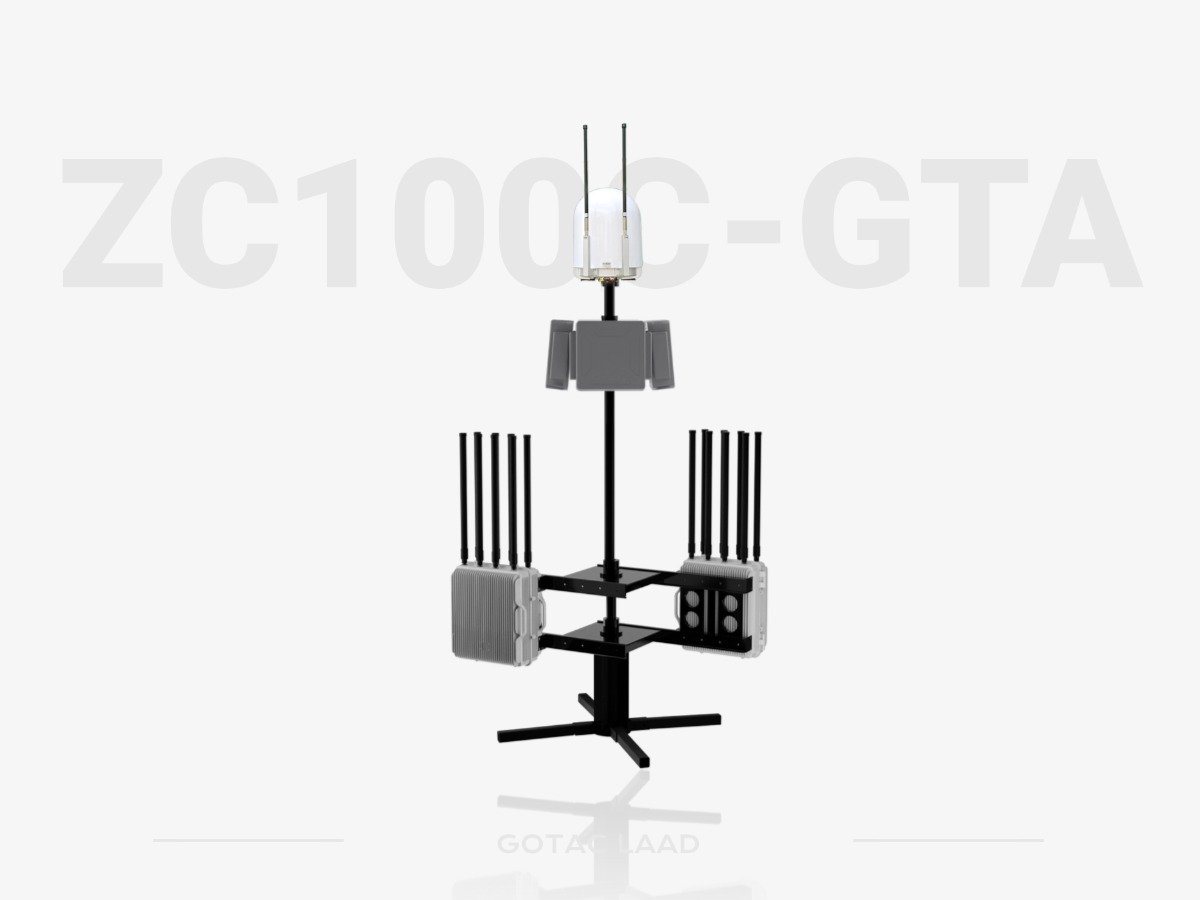

The ZC100C-GTA is an autonomous, high-capacity defense system featuring a Four-sided Directional Array for precision neutralization. It provides continuous 24/7 airspace surveillance and automated countermeasures, effectively forcing unauthorized drones to land or return to base. With its multi-band architecture, the system ensures a sterile low-altitude zone for the most sensitive high-security environments..
Functions

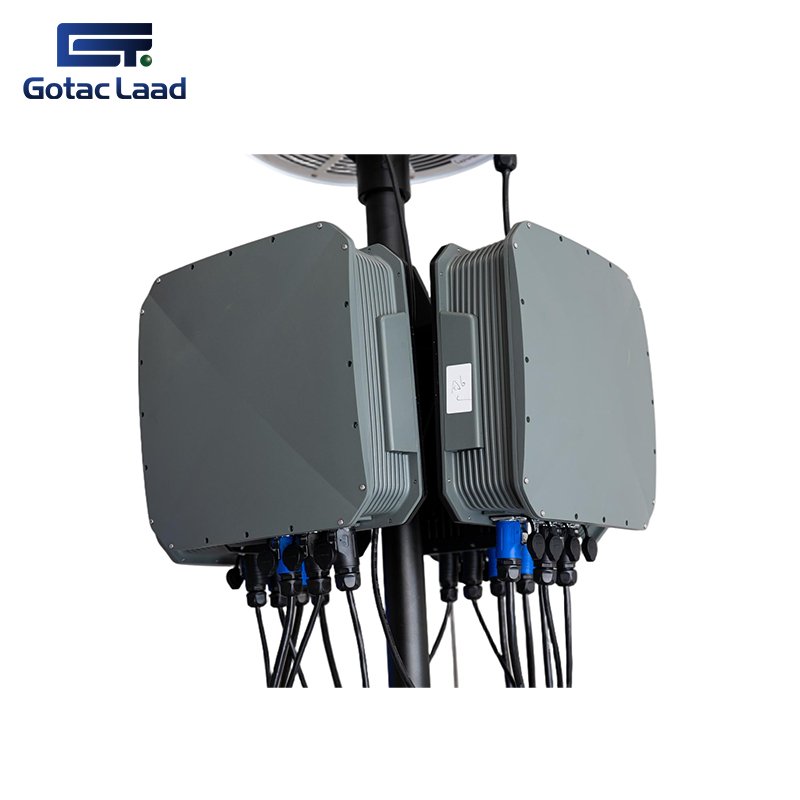

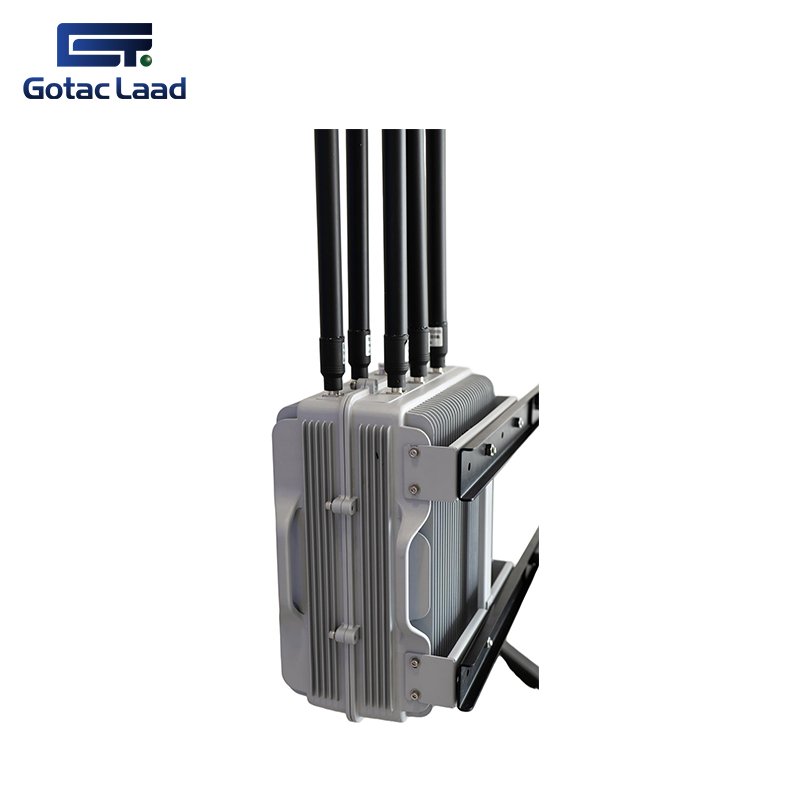

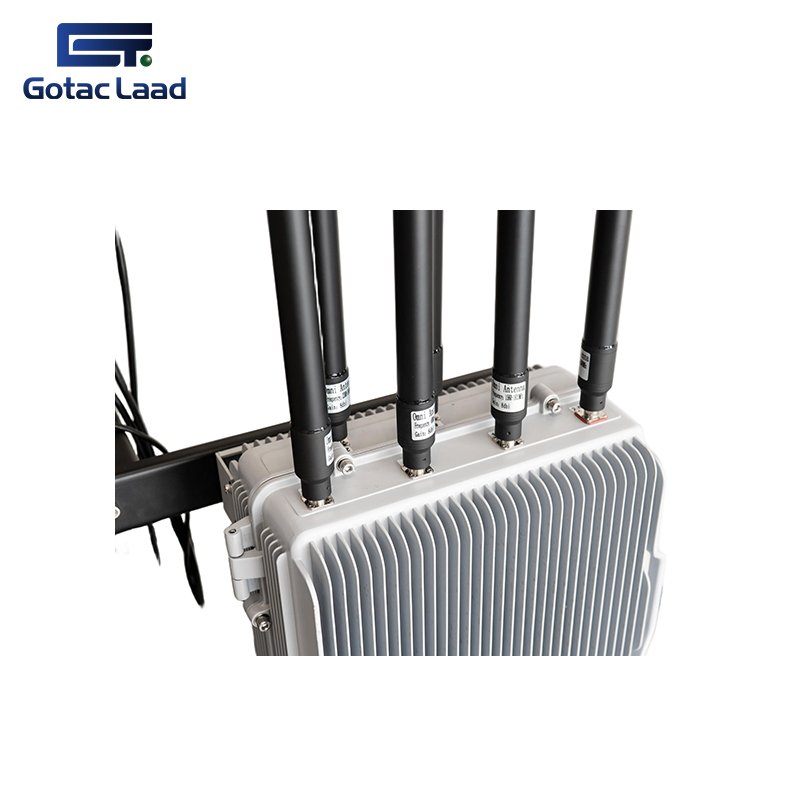

1. 13 Frequency Bands & 4 Directional Jamming Arrays
2. Super Interference to FPV Drones
3. 1+N Flexible Deployment FPV Video Transmission Detection and Capture360°
4. Full Frequency Band Detection
Parameters
| NO. | Feature | Specifications |
| 1 | Detection Frequency Band | 70MHz-6GHz full-frequency scanning,detection and display |
| 2 | Frequency Coverage | 433MHz, 530MHz, 750MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 3.3GHz, 5.2GHz, 5.8GHz |
| 3 | Effective Detection Radius | ≥10km (Depends on working conditions) |
| 4 | FPV Video Transmission Detection | 500MHz-6.2GHz full-frequency scanning, detection and display |
| 5 | Video Transmission Detection Range | ≥1.5km (Supports real-time video viewing) |
| 6 | Azimuth Range | Horizontal: 360° |
| 7 | Direction Finding Accuracy | ≤±15 RMS° |
| 8 | Detection Response Time | ≤5s |
| 9 | Omnidirectional Jamming Frequency Band | 410MHz-480MHz, 650MHz-740MHz, 740mHz-840MHz, 860MHz-930MHz, 1170MHz-1290MHz, 1200MHz-1340MHz, 1400MHz-1490MHz, 1560MHz-1620MHz, 2385MHz-2490MHz, 4880MHz-5080MHz, 5870MHz-6060MHz, 5150MHz-5250MHz, 5720MHz-5860MHz (Customizable) |
| 10 | Unidirectional Jamming Frequency Band | 830MHz-940MHz, 2385MHz-2490MHz, 5100MHz-5250MHz, 5720MHz-5860MHz |
| 11 | Jamming Distance | ≥3km (Depends on working conditions) |
| 12 | Operation Temperature | (-40℃~+60℃) ±2℃ |
| 13 | IP Rating | IP66 |
| 14 | Weight | ≤170kg (Excluding packaging) |
| 15 | Size | 1367mm / 1013mm / 2661mm (L / W / H) |
Application scenarios

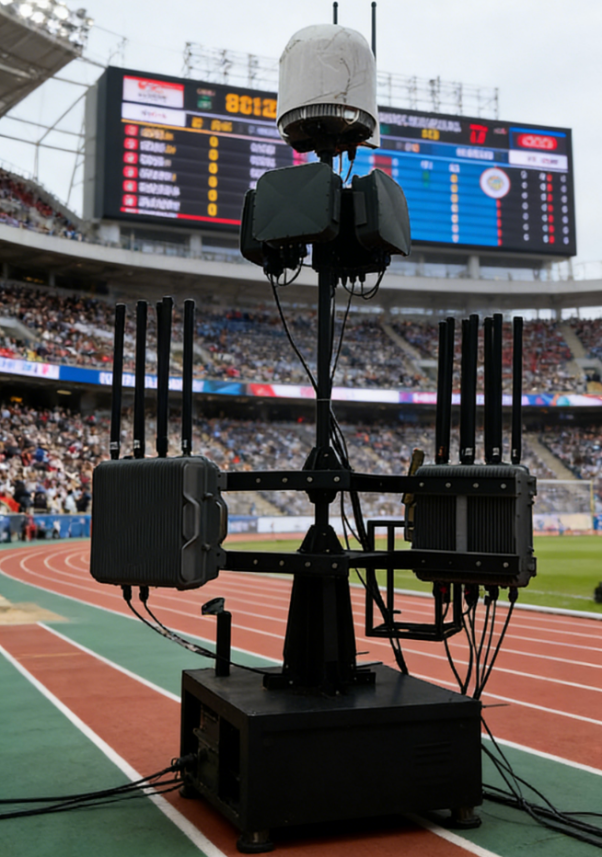

Large event venue:Ensuring public safety during high-profile events via persistent low-altitude surveillance

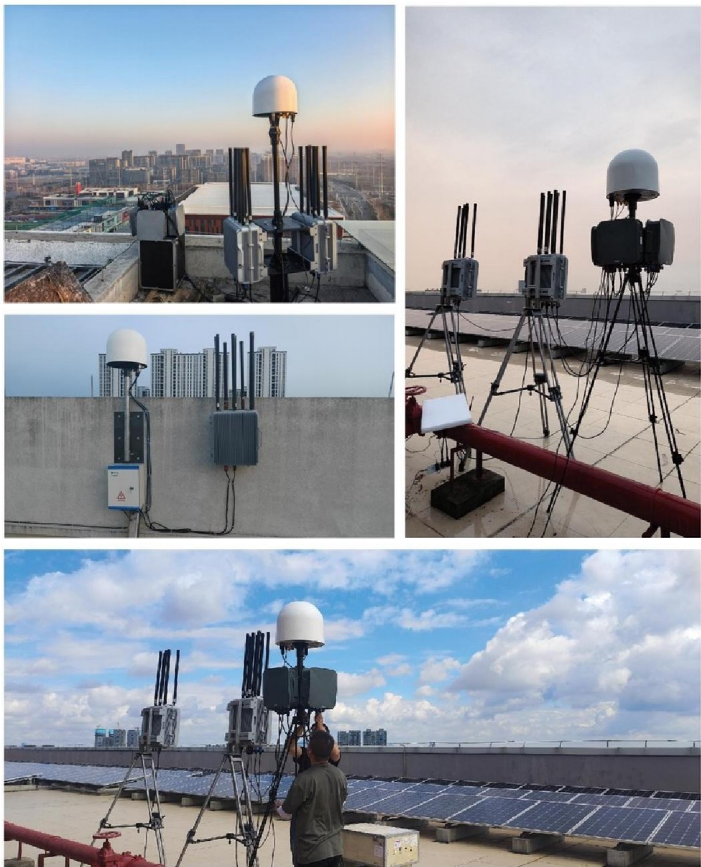

Urban Low-Altitude Defense:Effectively distinguishes authorized drones from potential threats in electromagnetically congested urban environments.

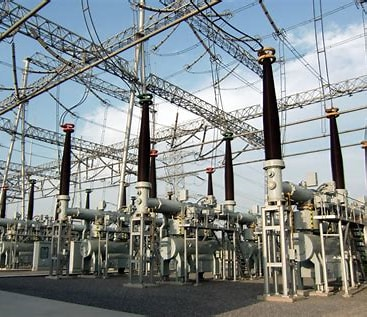

Power plant and substation deployment:Protecting critical infrastructure from unauthorized drone intrusions and potential sabotage.

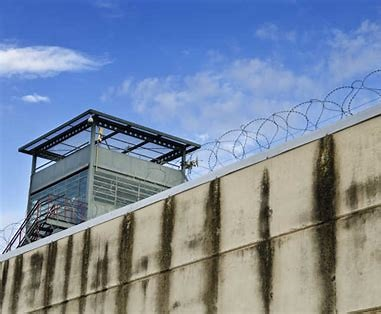

Prison guard:Preventing contraband delivery and unauthorized aerial photography in correctional facilities
Frequently Asked Questions
We provide an integrated “Detect-Track-Neutralize” ecosystem. This includes high-precision microwave and millimeter-wave radar for detection and advanced laser-based neutralization for physical obstacle clearing and drone disruption.
Absolutely. Our solutions are scalable and modular, designed for seamless integration into airports, oil & gas refineries, and government facilities. We support multiple protocols to ensure compatibility with your current security management platforms.
Our hardware is industrial-grade and field-proven. Thanks to our experience in military-standard manufacturing, our systems are built to operate 24/7 in high-salt, high-humidity, and wide-temperature environments.
Yes, we offer tailored solutions based on your specific detection range and neutralization needs. As a National High-Tech Enterprise, our R&D team can provide hardware and software customization to meet local regulatory and environmental standards.
